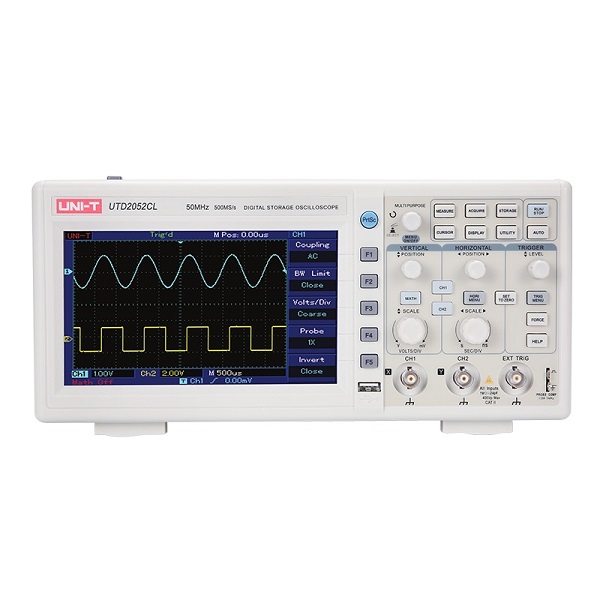

UTD 2052CL Digital Storage Oscilloscope- 50 Mhz
Roll over image to zoom in
₹22,500.00₹23,500.00 ( Include of GST ) (-4%)
UTD2000CL series is an economical bench-type digital storage oscilloscope, meeting needs of basic measurements. The simple and clear front panel design provides convenient operations for users.
- Bandwidth 50MHz
- Channels 2
- Sampling rate 500MS/s
Accessories: Probe x 2 (1x, 10x switchable), power cord, USB interface cable
- Product Net Weight: 2.2kg
- Bandwidth 50MHz
- Channels 2
- Sampling rate 500MS/s
- Rise time <7ns
- Memory depth 25kpts
- Waveform capture rate >2, 000wfms/s
- Vertical scale (V/div) 1mV/div〜20V/div
- Time base scale (s/div) 10ns/div〜50s/div
- Storage methods Setup, waveform, bitmap
- Trigger specifications
- Frequency counter 6 bits
- Trigger types Edge, pulse width, video (UTD2025CL), alternate
- Level range Internal ±8div from screen center
- EXT ±3V
- Holdoff range 80ns〜1.5s
- Edge trigger types Rise, fall, rise & fall
- Interfaces USB-OTG
- Power:100 – 240VACRMS, 45Hz -440Hz, CAT II
- LCD Size: Diagonal 178mm (7 inches)
- Product Color: Ivory white and Grey
- Product Size: 306mm x 147mm x 122mm
Warranty: As per UNI-T warranty policy
Additional information
| Weight | 2200 g |
|---|
