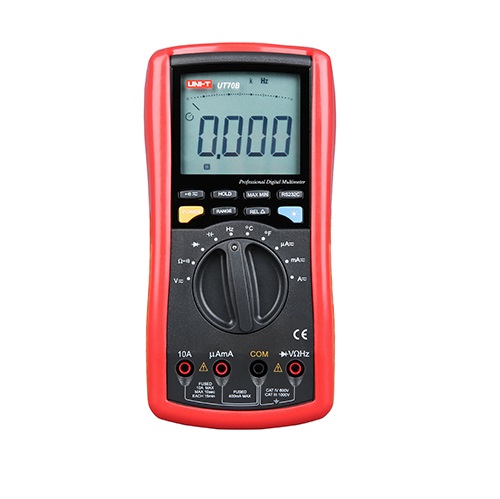

UT70B Digital Multimeter

Brand: UNI-T
SKU: SES UNIT-46

Roll over image to zoom in

₹7,000.00~~₹7,788.00~~ ( Include of GST ) (-10%)

Status:Out of stock

Test DC AC Voltage,DC AC Current,Resistance,Capacitance, Temperature(Celsius/Fahrenheit), and Diode
Check Frequence,Continuity Buzzer,Full Symbol Display,Sleep Function
Frequency 4kHz/40kHz/400kHz/4MHz/40MHz/400MHz
4000 Count LCD,Low Voltage Display, Data Hold, LCD Backlight, RS232 Interface
Auto Range
Fused 10 A range
Data Hold function
Max/Min mode
Relative mode
Analogue bar graph
Sleep mode
Low battery indication

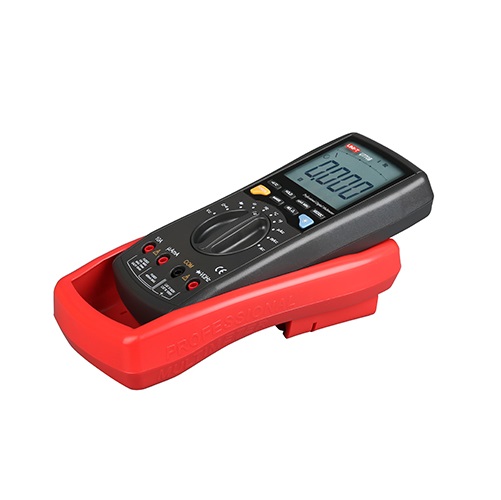

- Product Net Weight 600g (including holster)

SKU: SES UNIT-46 Categories: Industrial Parts, Testing & Measuring Tag: Digital Multimeter Brand: UNI-T

– DC Voltage (V) 400mV/4V/40V/400V/1000V ±(0.8%+1)
– AC Voltage(V) 4V/40V/400V/750V ±(1%+5)
– DC Current (A) 400mA/4000mA/40mA/400mA/10A ±(1%+2)
– AC Current (A) 400mA/4000mA/40mA/400mA/10A ±(1.5%+5)
– Resistance (Ω) 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1%+2)
– Capacitance (F) 4nF/40nF/400nF/4μF/40μF/400μF/4μF/40μF ±(4%+3)
– Frequency 4kHz/40kHz/400kHz/4MHz/40MHz/400MHz ±(0.1%+3)
– Temperature(°C) -40℃～1000℃ ±(1%+3)
– Temperature(°F) -40℉～1832℉ ±(1%+4)
– RPM 40kRPM ±(0.1%+3)
– Input Impedance for DC Voltage Measurement 10MΩ √
– Power 9V Battery (6F22)
– LCD Size 62mm×53mm
