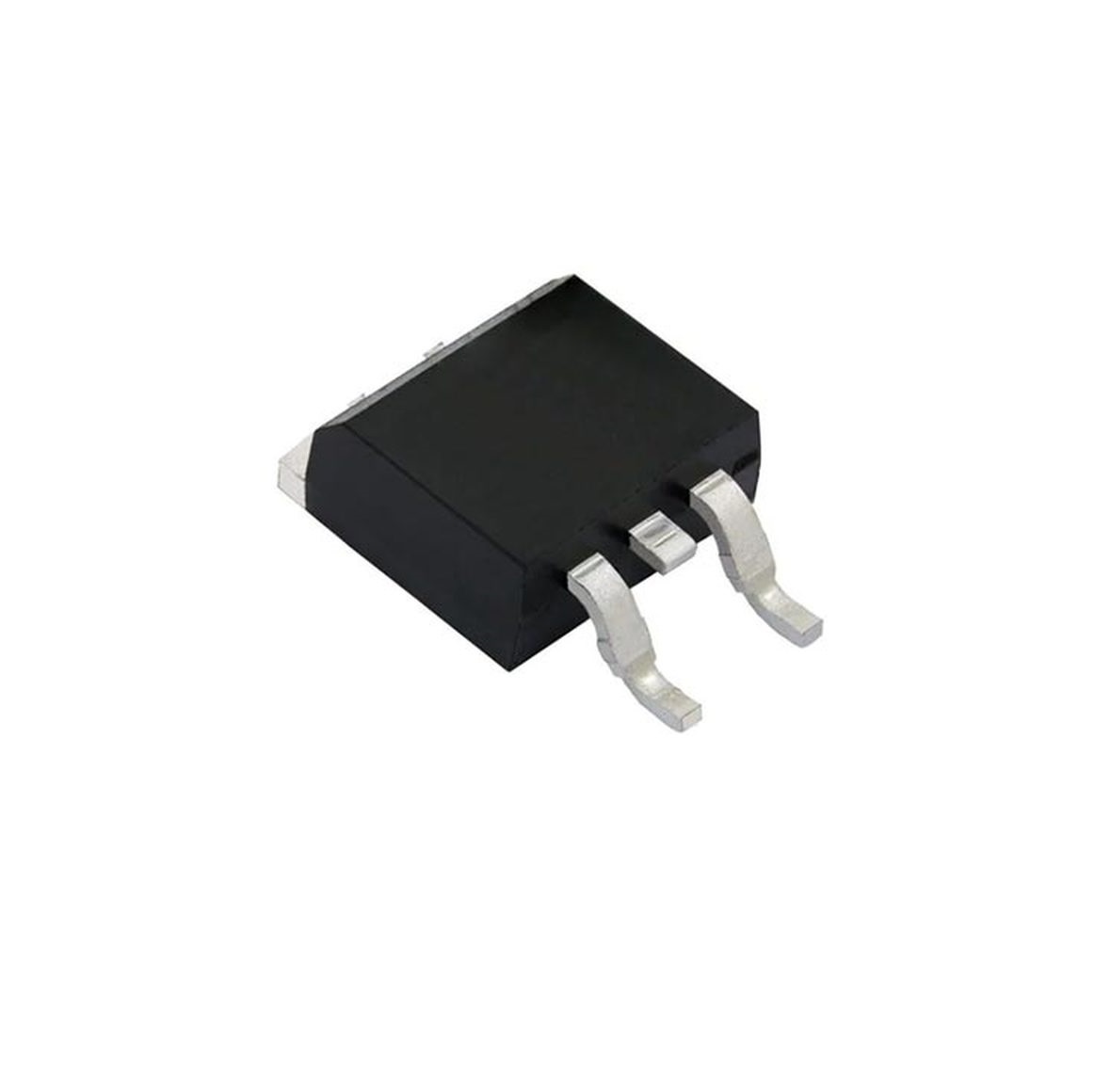

Triac T8-3560

These devices are suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits or for phase control operation in light dimmers and motor speed controllers, etc. The Snubberless versions (BTA, BTB08_xxxxW, and T8 series) are especially recommended for use on inductive loads, thanks to their high commutation performance. Logic level versions are designed to interface directly with low-power drivers such as Microcontrollers. By using an internal ceramic pad, the BTA series provides a voltage insulated tab (rated at 2500 V_RMS) in compliance with UL standards (file ref.: E81734).

Features/Specs:

• Brand: Generic
• Case/Package: DPAK
• Number of Pins: 2
• Mount: Surface Mount
• Channel Type: Bidirectional
• Hold Current: 35mA
• Element Configuration: Single
• Current Rating: 8A
• Leakage Current: 60mA
• Max Operating Temperature: -40-125°C
• RMS Current (Irms): 8A
• Max Repetitive Reverse Voltage (Vrrm): 600V
• Voltage Rating (DC): 600V
