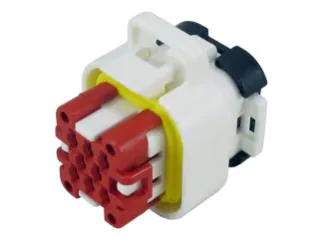

776286-2

Manufacturer: TE Connectivity
Product Category: Automotive Connectors
Product: Housings
Number of Positions: 8 Position
Pitch: 4 mm
Gender: Plug (Male)
Mounting Style: Cable Mount / Free Hanging
Termination Style: Crimp
Contact Plating: Tin
Wire Gauge Max: 16 AWG
Wire Gauge Min: 20 AWG
Series: Ampseal Sealed
Application: Power, Signal
Attachment Hole Diameter: 1.3 mm
Brand: TE Connectivity
Contact Material: Tin
Contact Type: Pin
Current Rating: 17 A
Description/Function: AMPSEAL, Automotive Headers
Flammability Rating: UL 94 V-0
Height: 34.6 mm
Ingress Protection: IP6K9K
Length: 27.4 mm
Lock Mate Feature: Integrated in Housing
Material: Plastic
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: – 40 C
Mounting Angle: Straight
Number of Rows: 3 Row
Product Type: Automotive Connectors
Row Spacing: 4 mm
Subcategory: Automotive Connectors
Voltage Rating: 250 VAC
Width: 33.6 mm
Wire Gauge Range: 16 AWG to 20 AWG
